Typical Products

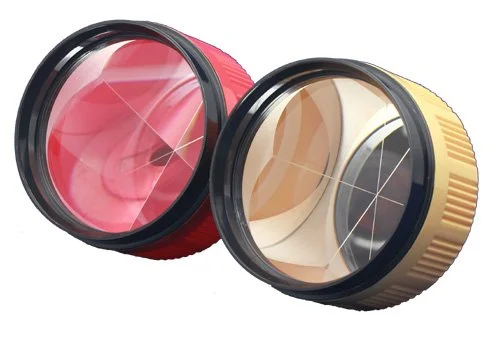

AY01A1 (left) / AY01A2 (right)
Effective Diameter：64mm / 64.5mm
Prism Constant (Offset)：Dependent on bracket
Integrated Angle Precision：<±8"/<±5" / <=±2"
Plate & Housing Material：PC Plastic
Compatible Systems：Universal / Standard
Film：Coated with Copper Film / Blue Film/ Silver Film as options

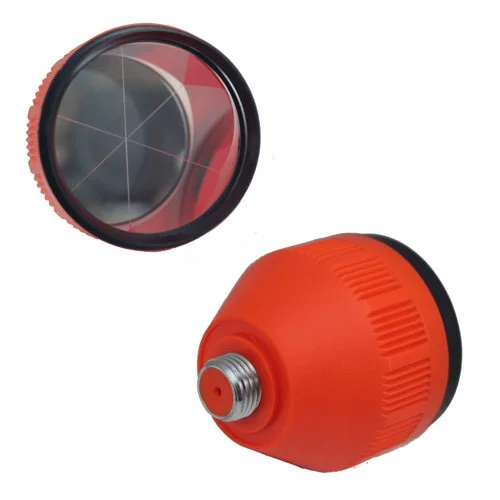

AY01B
Effective Diameter：64mm / 64.5mm
Prism Constant (Offset)：Dependent on bracket
Integrated Angle Precision：<±8"/<±5" / <=±2"
Plate & Housing Material：PC Plastic
Compatible Systems：Universal / Standard
Film：Coated with Copper Film / Blue Film/ Silver Film as options
GRZ101
Effective Diameter：64mm / 64.5mm
Prism Constant (Offset)：Dependent on bracket
Integrated Angle Precision：<±8"/<±5" / <=±2"
Plate & Housing Material：PC Plastic
Compatible Systems：Universal / Standard
Film：Coated with Copper Film / Blue Film/ Silver Film as options
Appication Scenarios

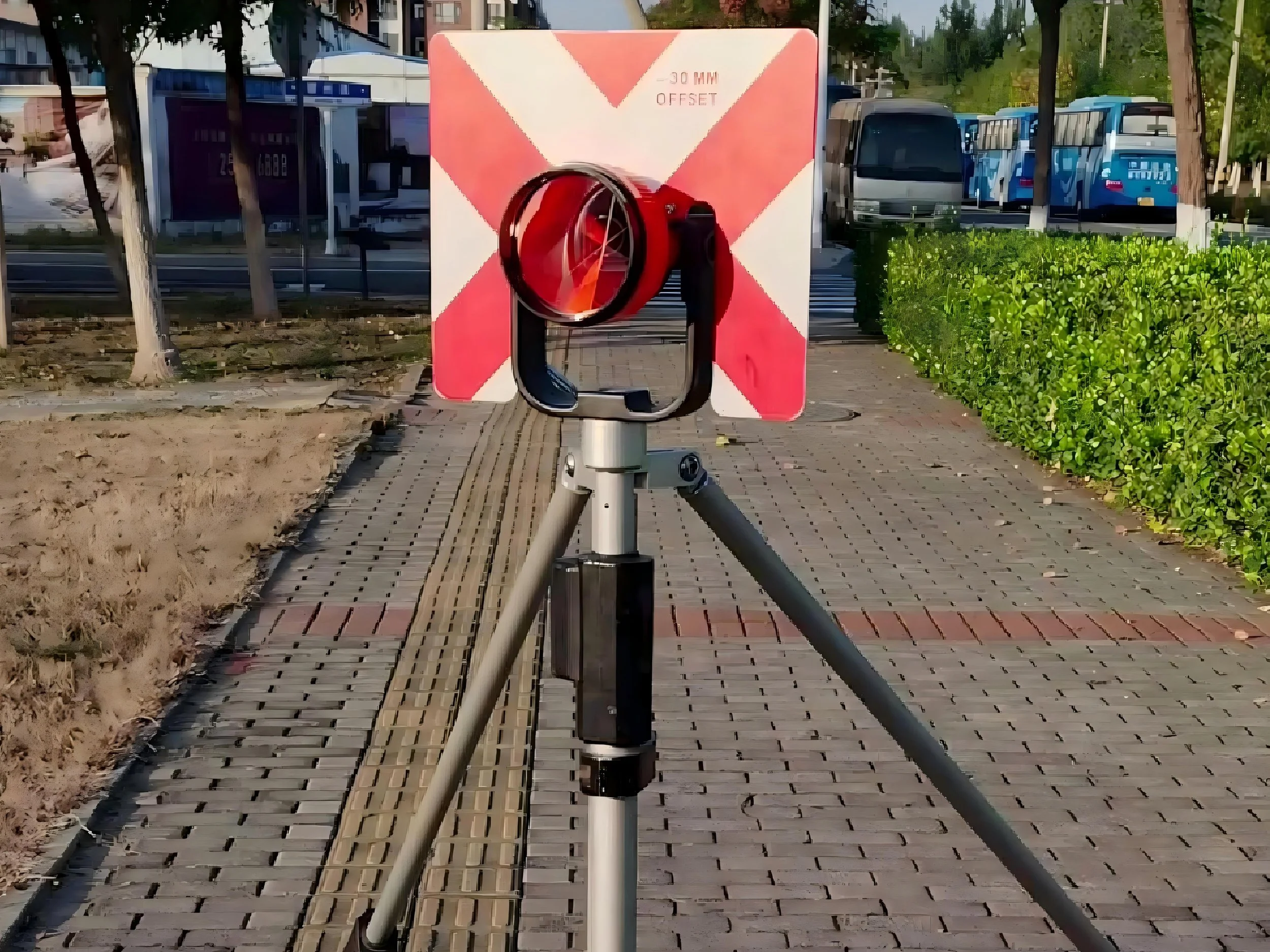

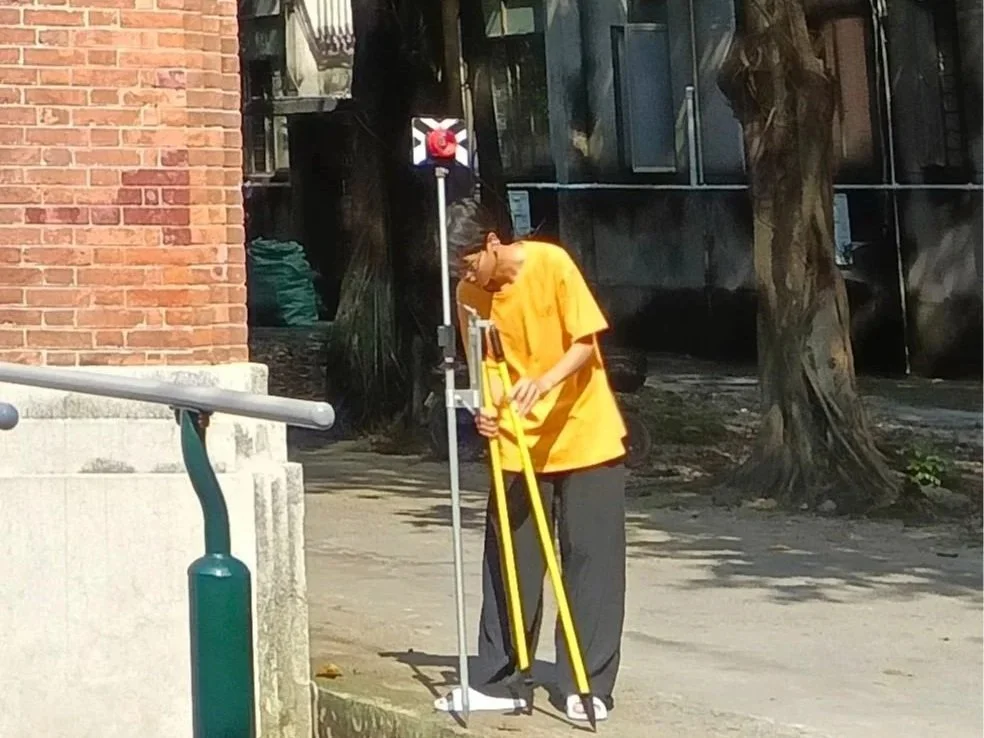

Road Survey

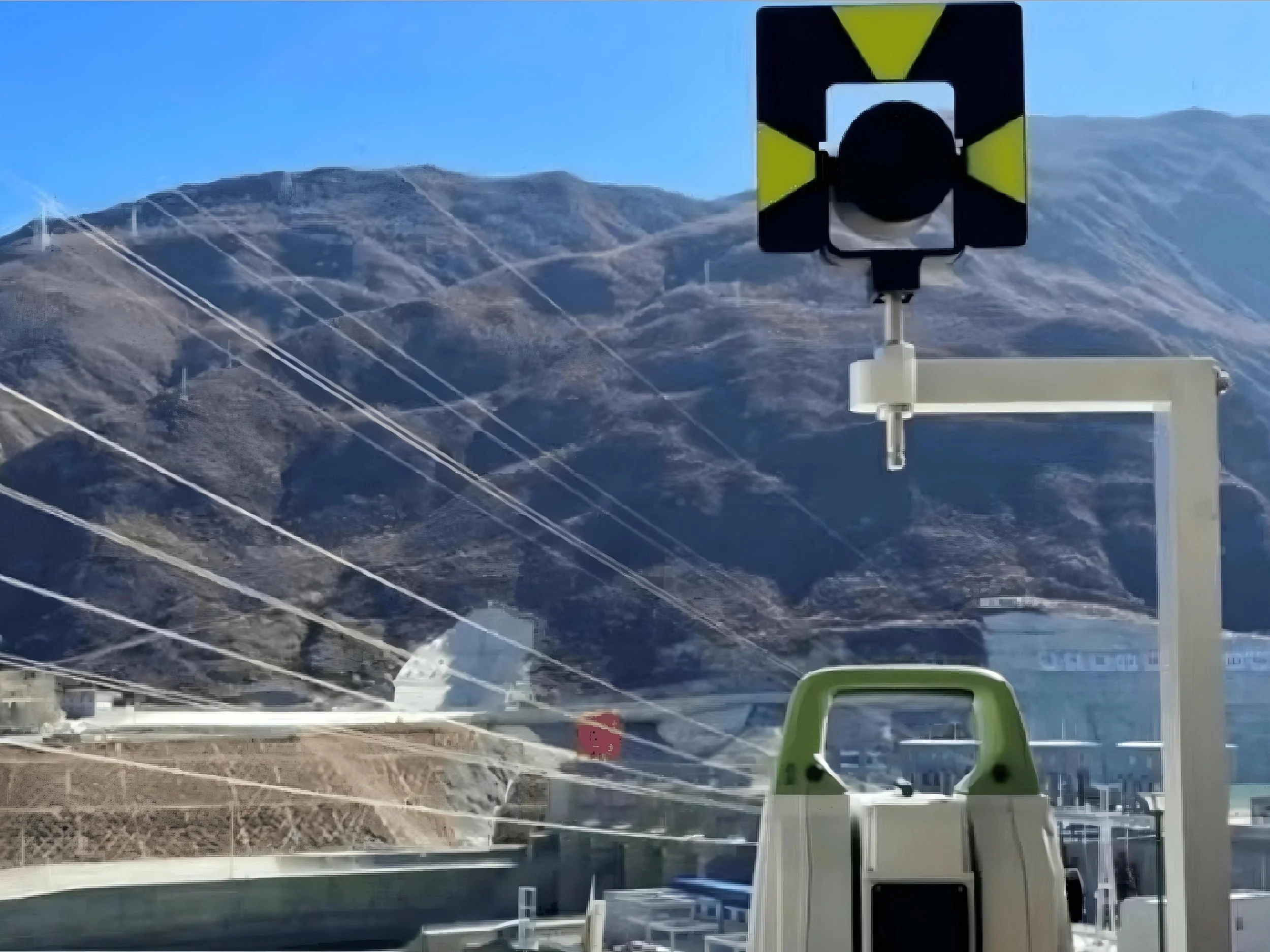

Dam Monitoring
Road Survey
Related Products
Optimal Precision
High-end surveying prism delivers exceptional accuracy and reliability in even the most challenging field conditions.
Maximum Lifespan
This maximum-lifespan surveying reflector is engineered to withstand harsh environments while delivering long-lasting, reliable accuracy in the field.
Best Cost Performance
Designed to deliver reliable accuracy at an affordable price, this cost-effective surveying reflector offers outstanding performance and value for everyday field work.
A chart displaying various miniature prism systems and accessories, including models like GMP111, GMP111-0, TDSmini103, TDSmini106, TDSmini105A, TDSmini105B, TDSmini102, TDSmini108, TDSmini109, TDSmini110, TDSmini111, GMP104, GMP104-D, GMP104-L, and GPR111. Each item includes specifications such as diameter, offset, mini pole size, etc.
An infographic titled "Mini Prism System" displaying various components for prism systems, including prisms, mounts, and joints, each labeled with part numbers and specifications.
A collection of mini prism system components including optical sensors, reflectors, and survey accessories with detailed specifications and sizes.
A catalog page displaying various prism reflectors and mini prisms with their specifications, including model numbers, effective diameters, integrated angle precision, drawtube materials, and compatibility information.
Collection of prism assembly kits with various colors and designs, including models TK10-1 to TK30, GPR111, GPR121, TB01, and TK16SET, each with specific color schemes and offset specifications.
Chart displaying various prism reflector systems, each with a drawing of the reflector, dimensions, and offset details. Includes models TDS10, TDS11, TDS12, TDS19, TDS15, TDS16-1, TDS16-2, TDS35, TDS17-1, TDS17-2, TDS17-3, TDS30, TDS8, TDS22, and a standard TDS carrying case.
