360° Reflectors & Prisms
The ultimate tracking target for Robotic Total Stations (RTS). Engineered with multi-prism arrays to provide continuous, omnidirectional reflectivity for high-speed dynamic layouts and machine control.
Omnidirectional
360-degree visibility eliminates manual alignment.
Precision Offsets
Engineered offsets, including standard 23.1mm setups.
Brand-Specific Joints
Threads for Trimble, Topcon, and Sokkia systems.
High-Speed Tracking
Optimized for Automatic Target Recognition (ATR).
Core Advantages
Engineered for Robotic Excellence

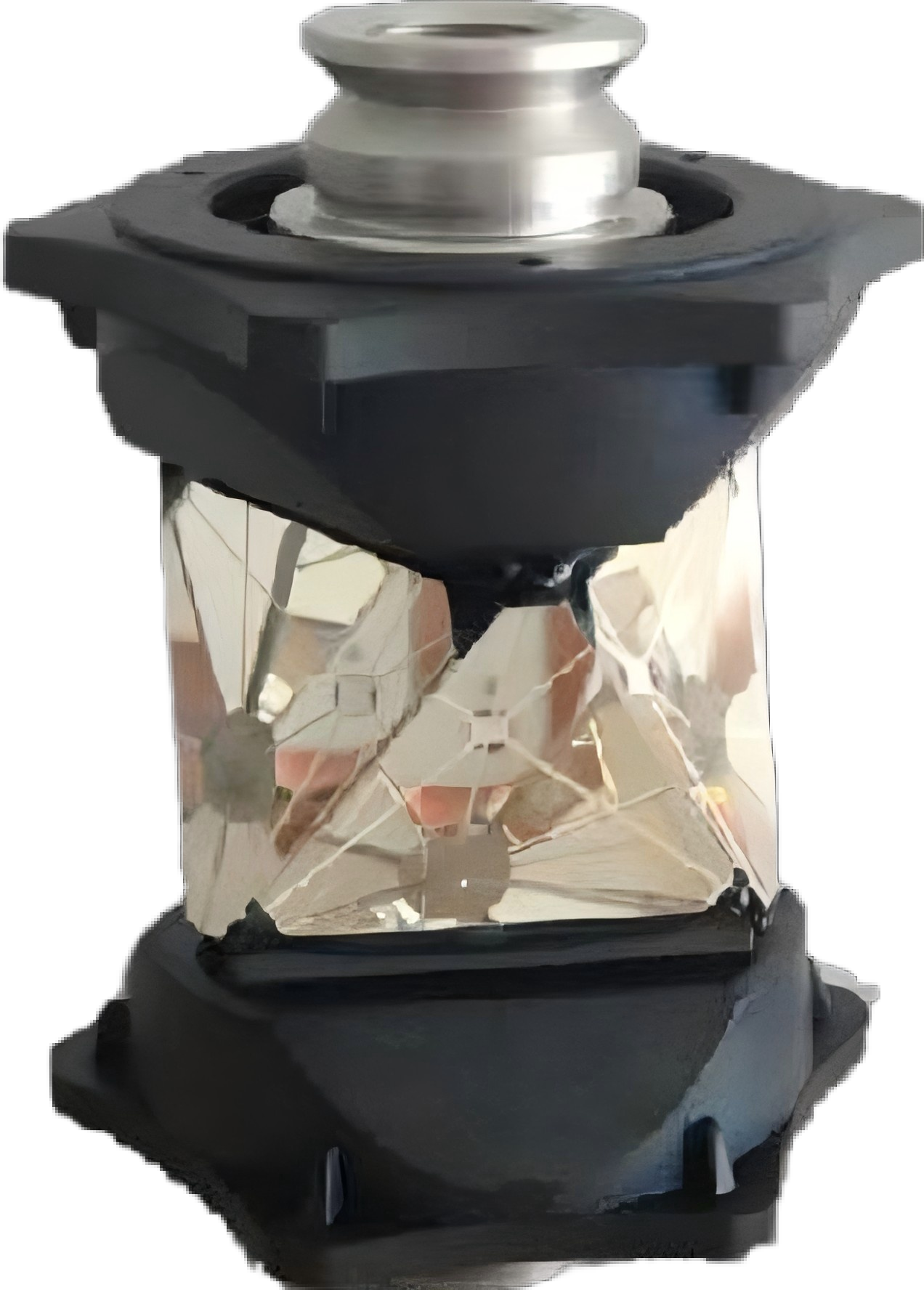

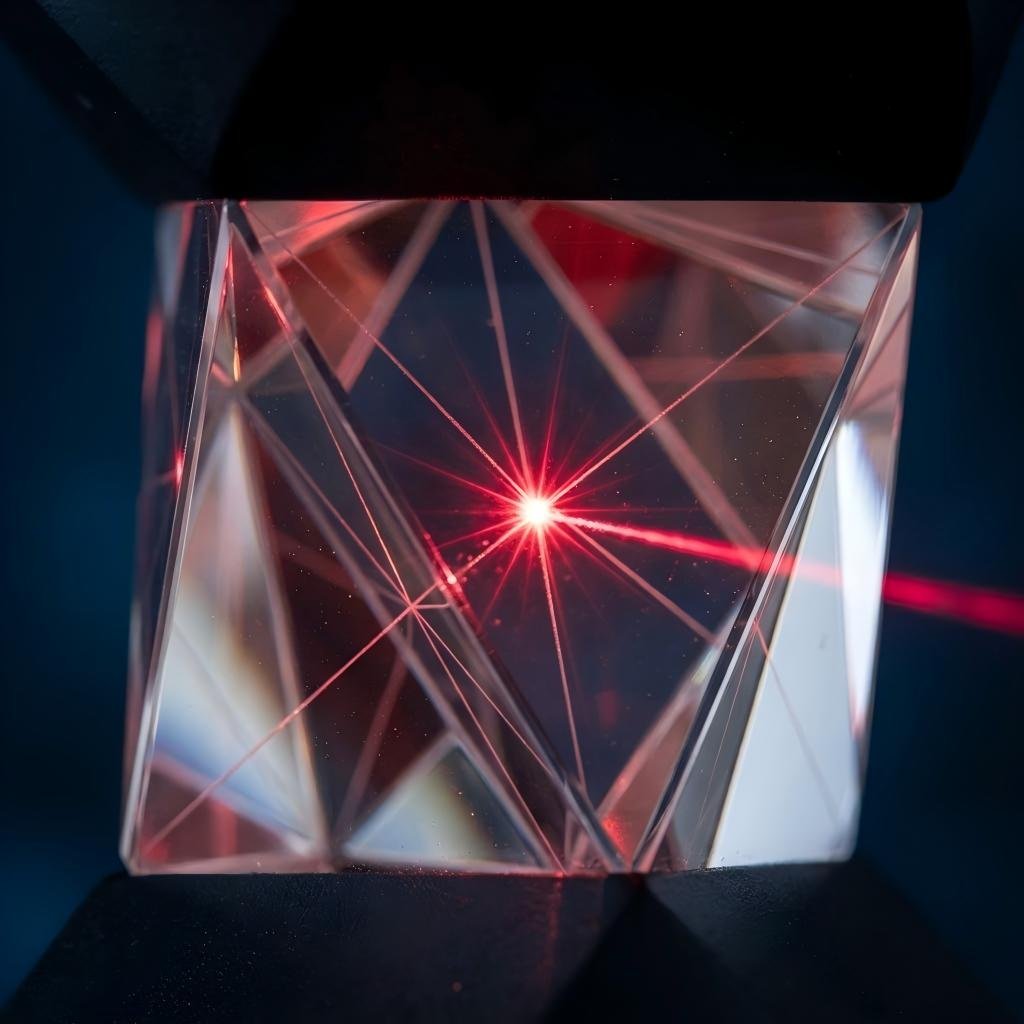

Seamless Omnidirectional Tracking
Consisting of precisely aligned high-quality glass prisms, the 360-degree array ensures that a reflective surface is always facing the instrument. This design is crucial for Robotic Total Stations, enabling rapid target lock and continuous tracking without the surveyor ever needing to point the prism back at the station.

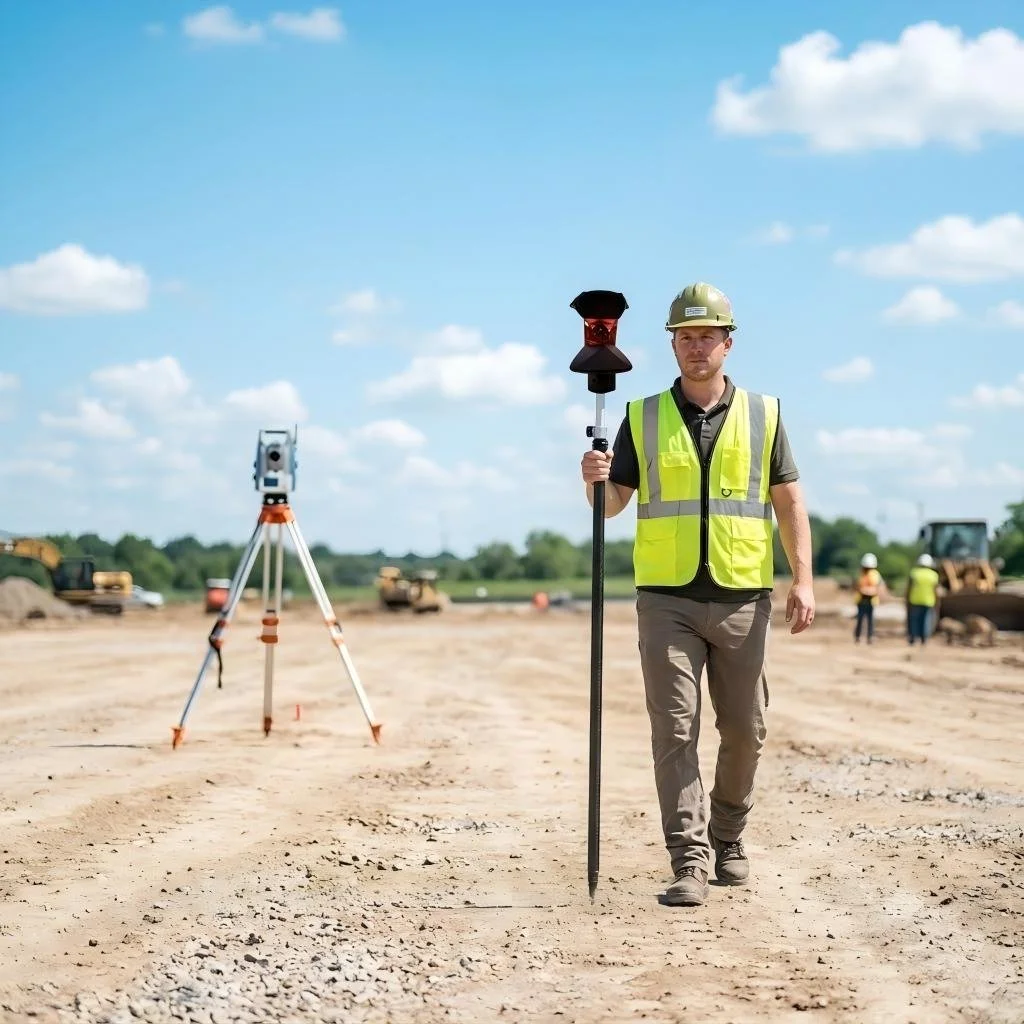

Empowering One-Man Operations
Maximize your field productivity. With a 360° prism mounted on a rover pole, a single operator can efficiently perform topographic surveys, stakeouts, and continuous kinematic data collection across large construction sites, saving both time and labor costs.

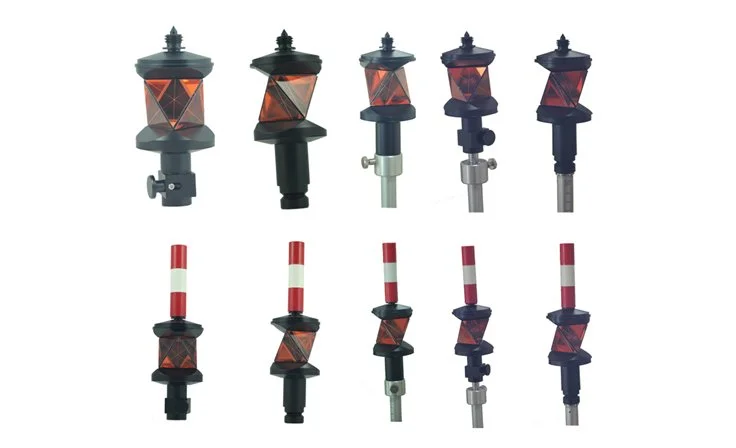

Perfect Integration with Major Brands
We understand that equipment fleets vary. Geodex 360° prisms are designed with dedicated joints to ensure a secure, wobble-free connection. Our lineup includes specific female threads for Trimble (5/8"×11), dual-thread setups for Topcon (5/8" & M16), and precise fittings for Sokkia instruments.
Technical Specifications
Select the right 360° prism configuration for your instrument fleet.
| Model Series | Product Image | Description | Detailed Specifications |
|---|---|---|---|

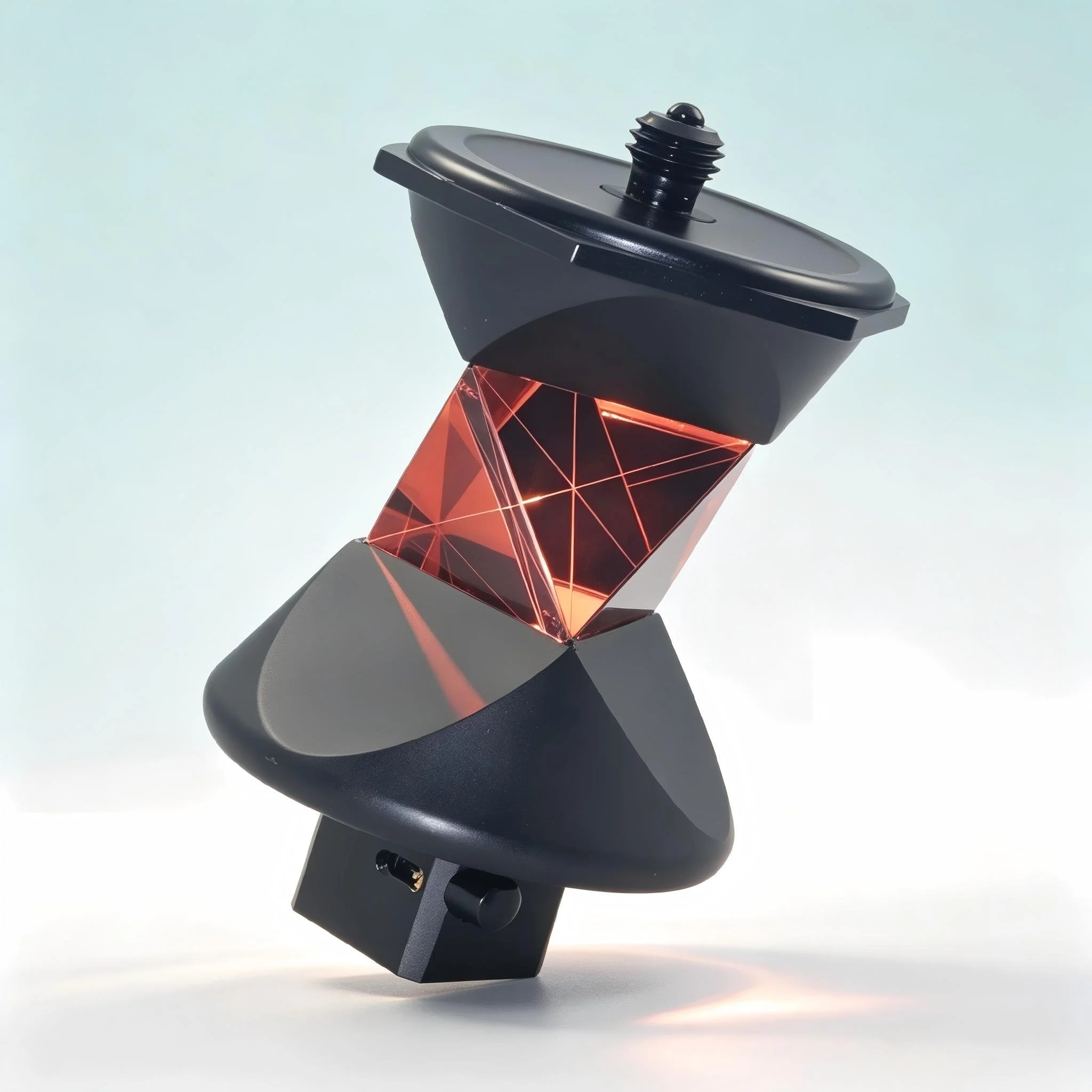

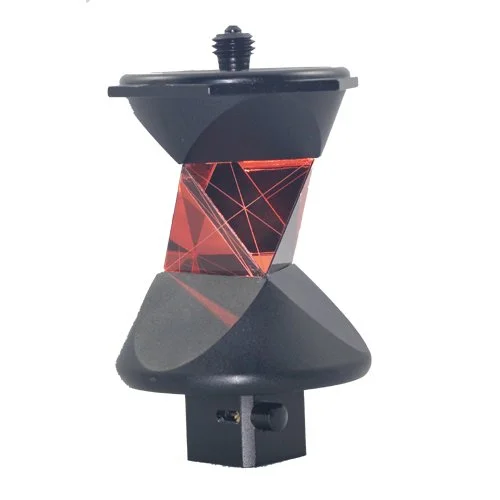

| GRZ122 |
|
Big Size 360 degree Prism |
Prism Constant (Offset): 23.1mm
Prism Accuracy: ≤±5"
Key Specifications: All Mental, 5/8"x11 screw & M16 Female Thread
Smoothness: 60-40
Work Range: 1500m
|

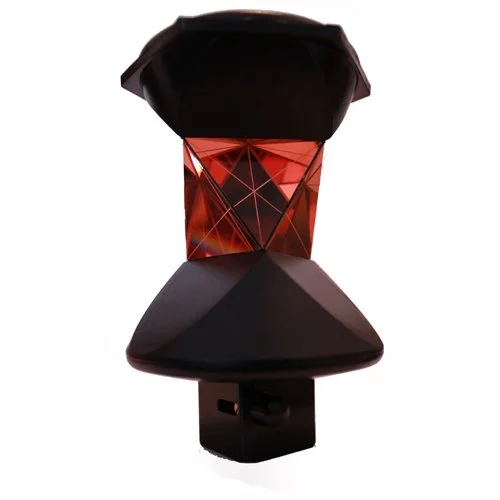

| GRZ4 |
|
Big Size 360 degree Prism |
Prism Constant (Offset): 23.1mm
Prism Accuracy: ≤±5"
Key Specifications: PC Plastic Housing, M16 Female Thread
Smoothness: 60-40
Work Range: 1500m
|

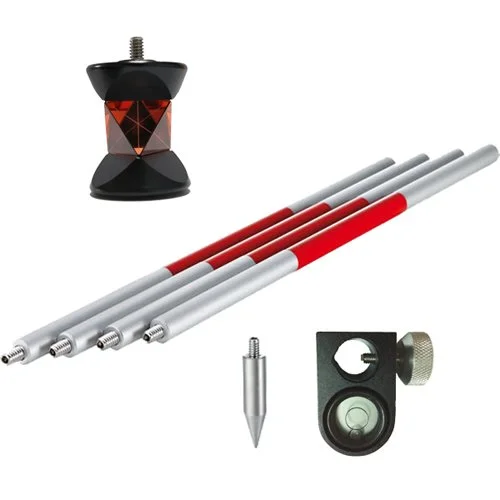

| GRZ101 |
|
Medium Size 360 degree Prism |
Prism Constant (Offset): 28.2mm
Prism Accuracy: ≤±5"
Key Specifications: Joint 1/4" Thread with 4x mini poles
Smoothness: 60-40
Work Range: 1000m
|

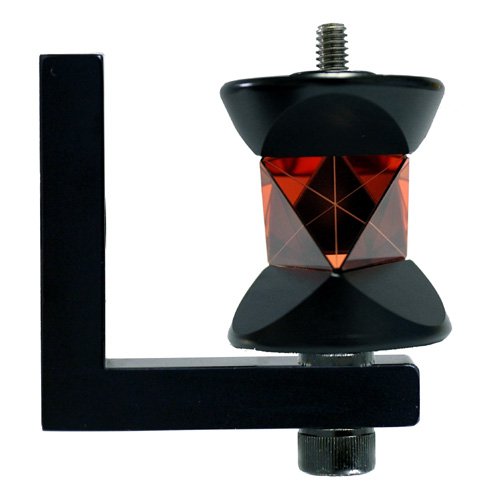

| GRZ101-L |
|
Medium Size 360 degree Prism with L Bracket |
Prism Constant (Offset): 28.2mm
Prism Accuracy: ≤±5"
Key Specifications: 1/4" Thread joint, 3 inches L bracket
Center to Bottom: 28.2mm
Smoothness: 60-40
Work Range: 1000m
|

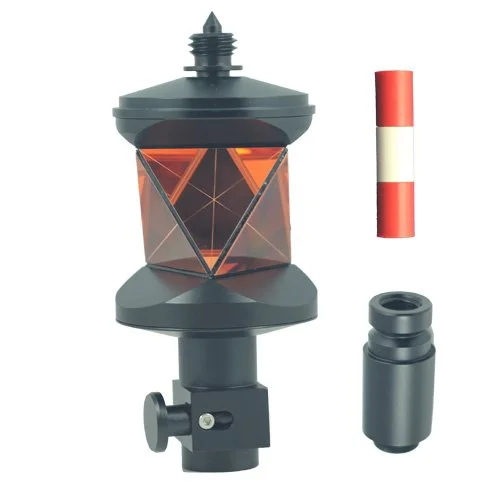

| ADS360 |
|
Big Size 360 degree Prism |
Prism Constant (Offset): 23.1mm
Prism Accuracy: ≤±5"
Key Specifications: 5/8" screw Joint & M16 Female Thread
Smoothness: 60-40
Work Range: 1500m
|
| ADS105 |
|
Medium Size 360 degree Prism |
Prism Constant (Offset): 23.1mm
Prism Accuracy: ≤±5"
Key Specifications: Sokkia Type, 5/8"x11 Female Thread
Smoothness: 60-40
Work Range: 1000m
|
Applications & Use Cases
Where our 360° reflectors make the biggest impact in the field.

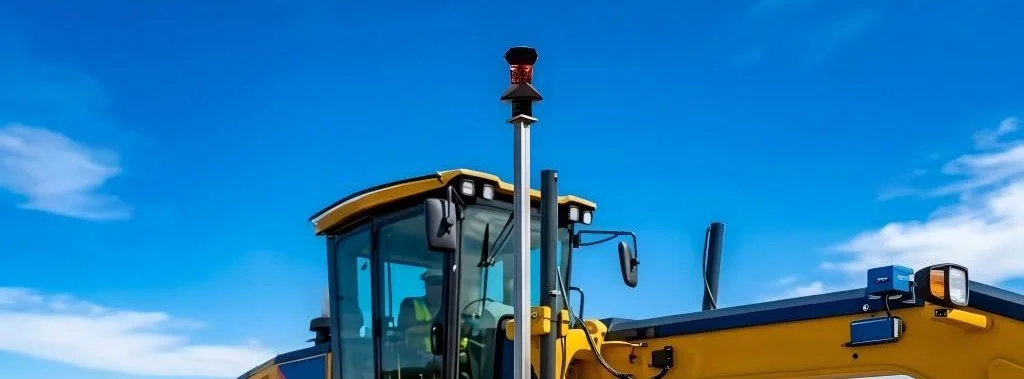

Intelligent Machine Control
In heavy highway construction and earthmoving, precision is profit. Geodex 360° prisms can be mounted rigidly to the masts of motor graders, dozers, and paving machines. As the machine moves, the robotic total station continuously tracks the prism, feeding real-time 3D elevation and positioning data to the machine control system for millimeter-accurate grading.

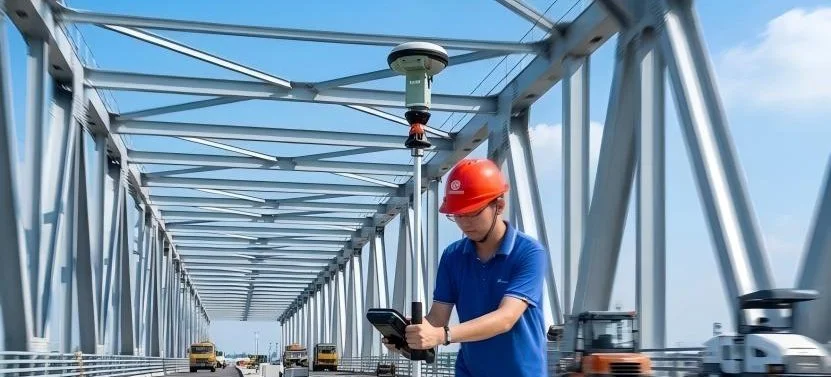

Dynamic Topographic Surveys & Stakeouts
For large-scale infrastructure projects, surveyors need to move quickly. Carrying a 360° reflector allows the operator to walk freely from point to point while the instrument tracks their movement automatically. This eliminates the repetitive alignment process, cutting stakeout times in half and drastically increasing points-per-day productivity.
Upgrade Your Robotic Surveying Workflow
Connect with our technical team to find the exact 360° prism configuration that matches your instrument's tracking capabilities and mounting requirements.
