Typical Products
GPR121
Effective Diameter : 64.4mm
Prism Constant (Offset) : 0mm
Integrated Angle Precision : <±8"/<±5" / <=±2"
Plate & Housing Material : Metal
Compatible Systems : Universal
Film : Coated with Copper Film / Blue Film/ Silver Film as options
TK16SET
Effective Diameter : 65mm
Prism Constant (Offset) : 0mm
Integrated Angle Precision : <±8"/<±5" / <=±2"
Plate & Housing Material : Metal
Compatible Systems : Universal
Film : Coated with Copper Film / Blue Film/ Silver Film as options

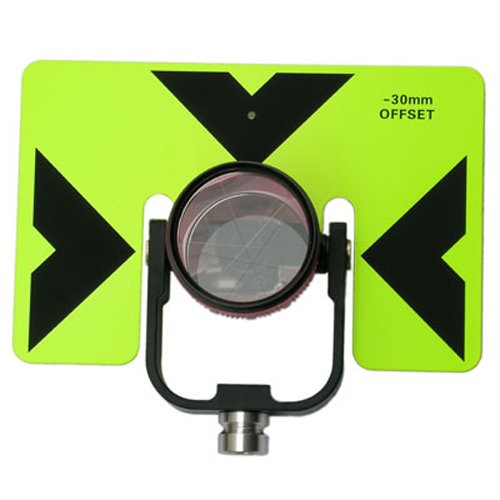

TK18SET
Effective Diameter : 64mm
Prism Constant (Offset) : -30 / 0mm
Integrated Angle Precision : <±8"/<±5" / <=±2"
Plate & Housing Material : Metal
Compatible Systems : Universal
Film : Coated with Copper Film / Blue Film/ Silver Film as options
TK20SET
Effective Diameter : 64mm
Prism Constant (Offset) : -30 / 0mm
Integrated Angle Precision : <±8"/<±5" / <=±2"
Plate & Housing Material : Metal
Compatible Systems : Universal
Film : Coated with Copper Film / Blue Film/ Silver Film as options
Application Scenarios
Construction Site Survey
Indoor Survey
Machine Control Monitoring
Robotic Total Station Survey
Related Products
Optimal Precision
High-end surveying prism delivers exceptional accuracy and reliability in even the most challenging field conditions.
Maximum Lifespan
This maximum-lifespan surveying reflector is engineered to withstand harsh environments while delivering long-lasting, reliable accuracy in the field.
Best Cost Performance
Designed to deliver reliable accuracy at an affordable price, this cost-effective surveying reflector offers outstanding performance and value for everyday field work.
A chart displaying various miniature prism systems and accessories, including models like GMP111, GMP111-0, TDSmini103, TDSmini106, TDSmini105A, TDSmini105B, TDSmini102, TDSmini108, TDSmini109, TDSmini110, TDSmini111, GMP104, GMP104-D, GMP104-L, and GPR111. Each item includes specifications such as diameter, offset, mini pole size, etc.
An infographic titled "Mini Prism System" displaying various components for prism systems, including prisms, mounts, and joints, each labeled with part numbers and specifications.
A collection of mini prism system components including optical sensors, reflectors, and survey accessories with detailed specifications and sizes.
A catalog page displaying various prism reflectors and mini prisms with their specifications, including model numbers, effective diameters, integrated angle precision, drawtube materials, and compatibility information.
Collection of prism assembly kits with various colors and designs, including models TK10-1 to TK30, GPR111, GPR121, TB01, and TK16SET, each with specific color schemes and offset specifications.
Chart displaying various prism reflector systems, each with a drawing of the reflector, dimensions, and offset details. Includes models TDS10, TDS11, TDS12, TDS19, TDS15, TDS16-1, TDS16-2, TDS35, TDS17-1, TDS17-2, TDS17-3, TDS30, TDS8, TDS22, and a standard TDS carrying case.
